| Shop | : | |
|---|---|---|
| Product ID | : | 1238 |
| Brand | : | Kyoritsu |
| Availability | : | In Stock |
| Price BDT | : | 0.00 Taka |
| Reviews | : | |
| Share | : |
-
Customer Support
+8801965656380 -
Cash One Delivery
Pay after getting the product on hand -
Warranty
1 Year warranty by manufacturer -
Secured Payment Method
Your cart is always secure to shop -
Easy Return Policy
7 days return without physical defect.

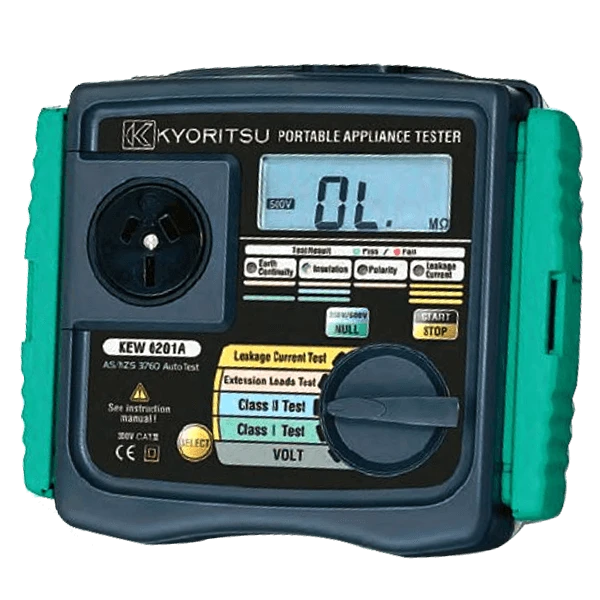

Kyoritsu 6201A PAT tester has four do something functions, including current leakage evaluate and measuring conductor resistance. Built-in functions are in addition to easily reach for Class I and II appliances, as proficiently as a test specifically for strengthening leads. Readings are displayed upon a large LCD screen following four LEDs knocked out, which indicate a p.s. or fail based upon the requirements outlined by AS/NZS 3760.
Key Features: Kyoritsu KEW 6201A Portable Appliance Testers
- Class I and Class II Appliance Testing
- Conductor Resistance Testing
- Current Leakage Testing
- Mains Voltage Measurement
- LCD Display
- LED Pass/Fail Indication
- Extension Lead Test
Specifications: Kyoritsu KEW 6201A Portable Appliance Testers
| Supply voltage | 240V±10% |
|---|---|
| Frequency | 50Hz±1% |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree2 IEC 61326-1 (EMC) |
| Dimensions | 167(L) × 185 (W) × 89 (D) mm |
| Weight | 1.2kg (only the instrument body) |
| Included Accessories | 7123 (Power cord [AU]) 7129A (Test leads with alligator clip) 7161A (Flat test prod [black]) 7140 (Adapter for extension cord) 9147 (Cord case) 9121 (Shoulder strap) Instruction manual |
| Optional Accessories | 7121B (Distribution board test leads) |
- N/A
- N/A
